fiber laser welding machine

Laser welding Machine

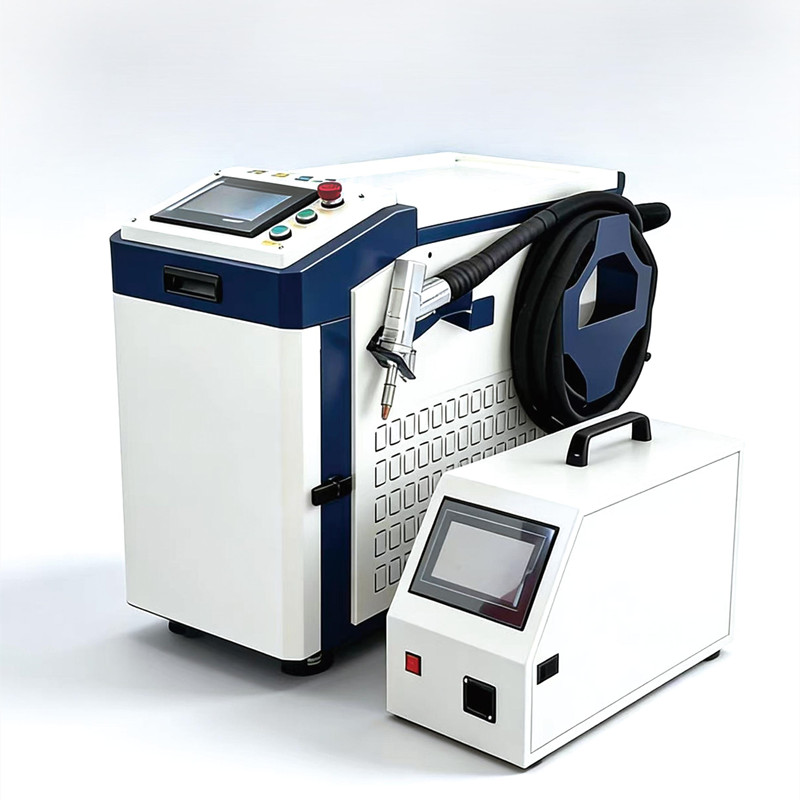

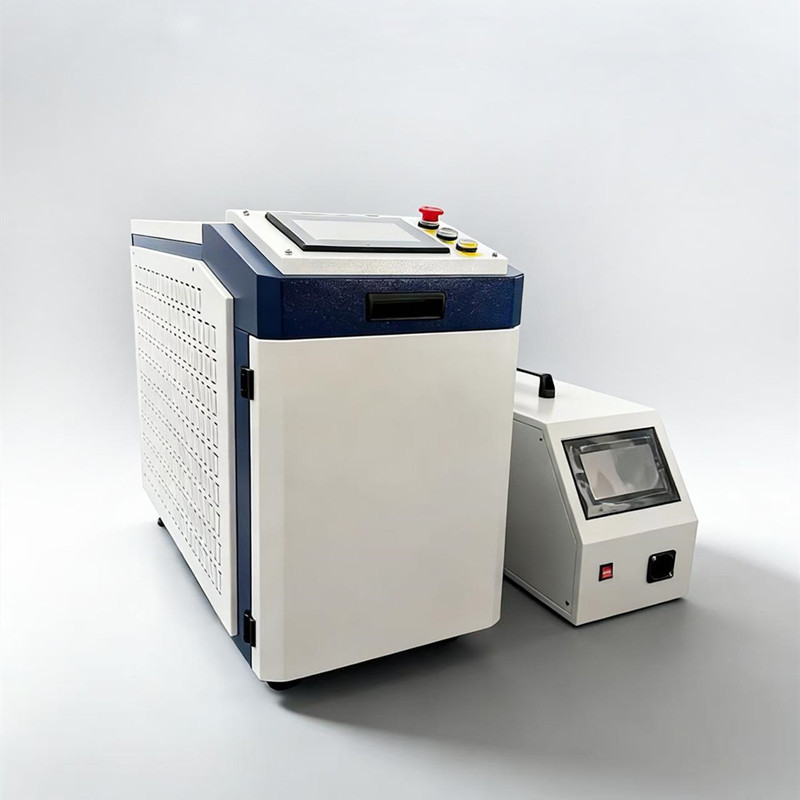

Handheld Fiber Laser Welding Machine LW Series

This is our new generation of laser welding machine. The reason why we rate it as cost-effective is that it combines welding, cutting and cleaning together at a lower price. Over 20 kinds of foreign languages are available to satisfy customers from different countries.

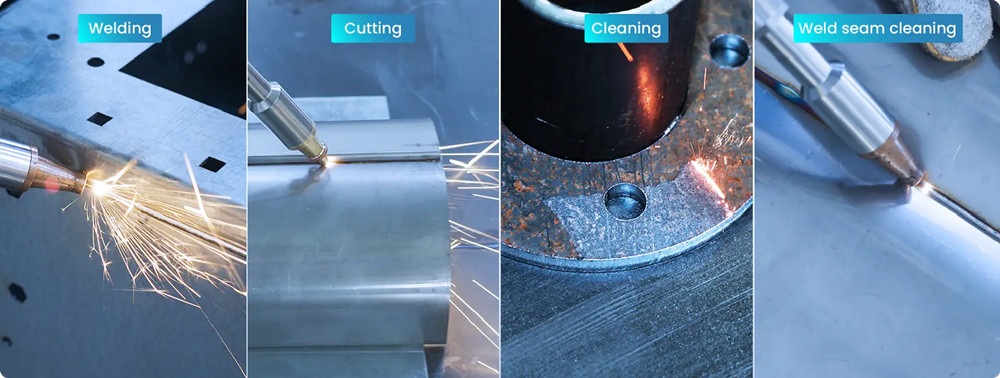

4 in 1 Multifunction
Laser power: 1500W-3000W






Entry-level Laser Welder at High Cost Performance

Focusing on high cost performance and durability, it has 4 functions incl. welding, cleaning, cutting and weld seam cleaning, and pays more attention to upfront investment and welding stability, fitting for small and medium-sized manufacturers.

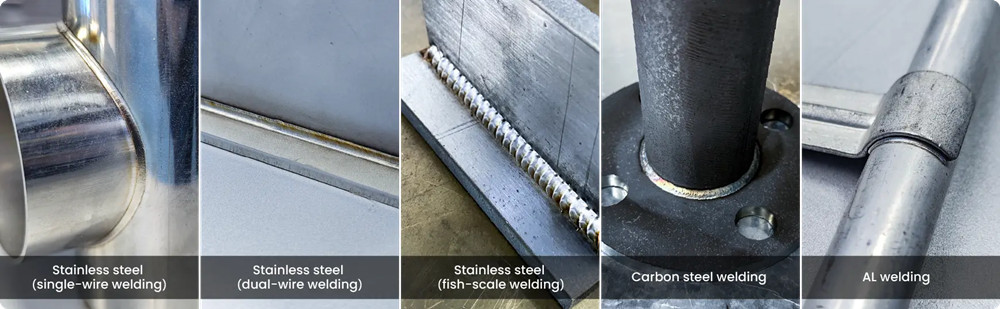

Excellent Welding Effects

Due to high energy density and low heat input, it can weld stainless steel, carbon steel, AL and other metals with high-strength, nice-pleasing weld seams that face minimal deformation.

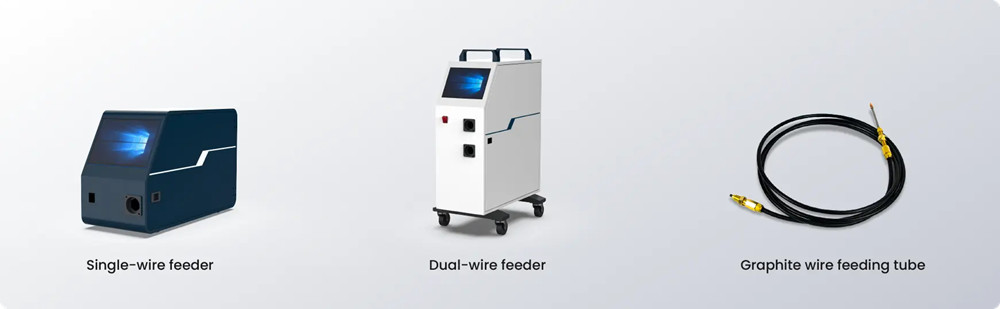

Single-/Dual-wire Feeder Available for Selection

With such optional accessories equipping touch screen and four-wheel dual-drive wire feeding device, users will enjoy more stable, smooth wire feeding to support different weld seams. To adapt to AL workpiece, U-shaped wheel works with graphite wire feeding tube, so that welding effects get much better.








24 Kinds of Languages

Provide Chinese, English, Korean, Russian, Japanese, German, French and more to make users from different countries easier in operations.








Laser Welding/cleaning machine

LW2000

LW3000

laser power

2000W

3000W

Laser Wavelength

1080nm

1080nm

Power regulation range

10-100%

10-100%

modulation frequency

5KHz

5KHz

Fiber optic cable length

9 meters

9 meters

Output fiber core diameter

30um

30um

Bending radius of fiber optic cable

200mm

200mm

Working widthWelding width

1-8mm

1-8mm

water addition

16L

16L

Use air pressure

1-3bar

1-3bar

working voltage

220V 50Hz/60HZ   AC1P

380V 50Hz/60HZ   AC3P

machine weight

150kg

180kg
